AIR OPERATED COLLET CLOSER

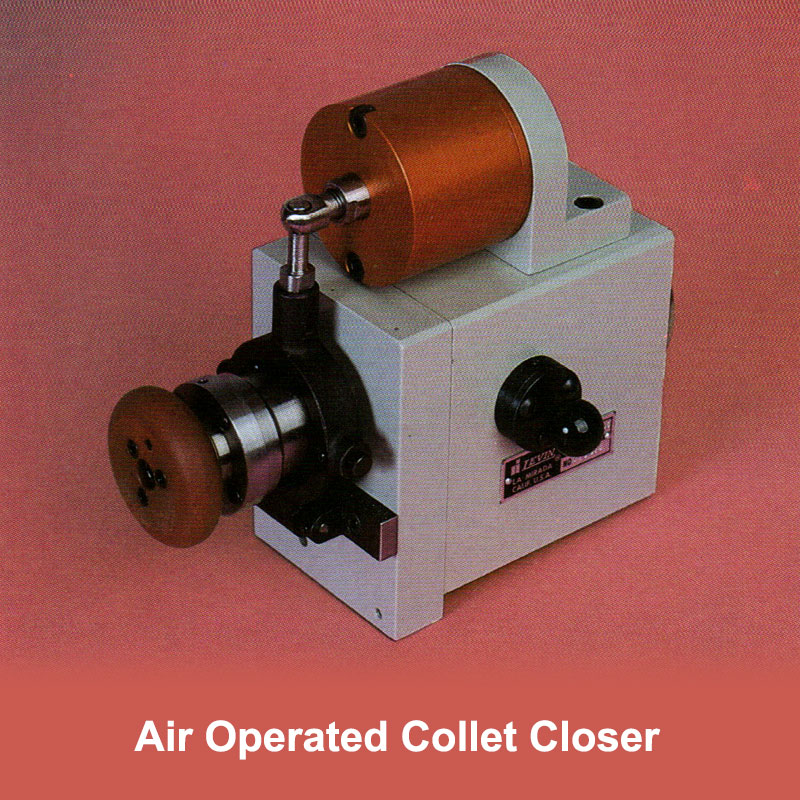

For high production needs the Levin Air-operated collet closer is desirable. The unit may be quickly mounted to any 3C or D type headstock.
Gripping tension is easily adjusted to the desired level. The location of the air cylinder is on top of the headstock and out of the way in order to facilitate the use of bar stock.
| Part# | Style | Price |
|
1910-90* |
D |
$5,250.00 |
|
1910-91* |
3C |
$5,850.00 |
|
1910-93* |
D Headstock with Air Closer Mounted |
$21,504.00 |
|
1910-94* |
3C Headstock with Air Closer Mounted |
$25,032.00 |
LEVER COLLET CLOSERS

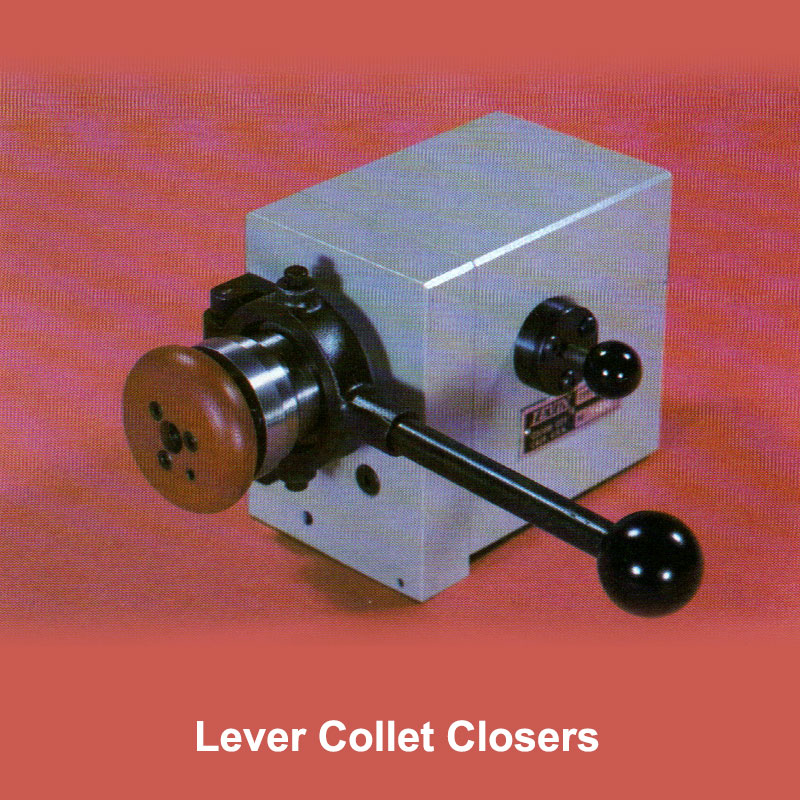

The lever-operated collet closer is a particularly desirable device for production work when handling time must be kept to a minimum. The unit may quickly be applied to any Levin lathe with a totally enclosed headstock. All working parts are hardened and ground. Gripping force is easily adjusted to the desired level and the location of the lever is such as to require only a slight horizontal movement to open or close the collet. A handwheel is provided to expedite manual rotation of the spindle for inspection and set-up of work.
| Part# | Collet Style | Description | Price |
|
0351-03* |
WW |
For totally enclosed WW headstocks |
$4,250.00 |
|
0372-03* |
D |
For totally enclosed D headstocks |
$4,250.00 |
|
0053-03* |
3C |
For totally enclosed 3C headstocks** |
$4,950.00 |
|
**Will not operate D or WW collets used in 3C spindle adapter |
|||
DRAWBARS

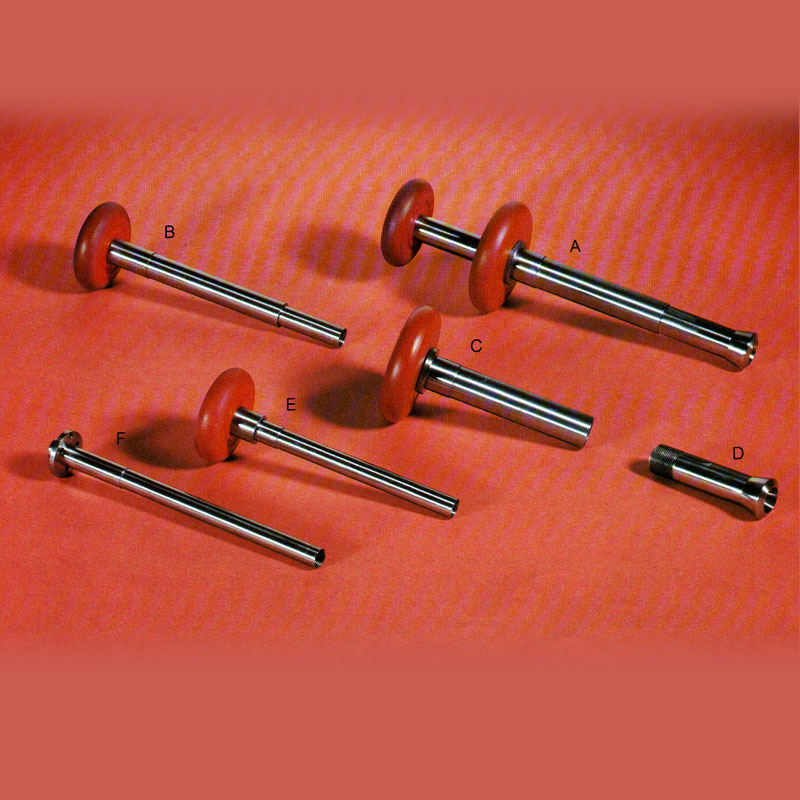

Listed on this page are standard drawbars used with headstock, tailstock and collet closers. Order drawbars by catalog number. For other drawbars not listed, contact us.
| Picture | Description | ||||
|
E |
D-Type drawbars used to hold D-Size Collets or tooling in Headstock or Tailstock. | ||||
| Part # | Size | Headstock | Tailstock | Collet Closer | Price |
|
0044-77 |
D |
– |
 |
– |
$350.00 |
|
0047-77 |
D |
|
– |
– |
$350.00 |
| Picture | Description | ||||
|
F |
Lever Collet Closer Type Drawbar | ||||
| Part # | Size | Headstock | Tailstock | Collet Closer | Price |
|
1200-00 |
D |
– |
– |
|
$350.00 |
| Picture | Description | ||||
|
C |
3-C Drawbar to hold 3-C to D adapter or 3-C Collets | ||||
| Part # | Size | Headstock | Tailstock | Collet Closer | Price |
|
0051-77 |
3-C |
|
– |
– |
$450.00 |
| Picture | Description | ||||
|
B |
D Drawbar to hold D-Size collets or tooling in 3-C to D adapter | ||||
| Part # | Size | Headstock | Tailstock | Collet Closer | Price |
|
0053-77 |
3-C to D |
|
– |
– |
$550.00 |
| Picture | Description | ||||
|
Not Pictured |
Lever Collet Closer Drawbar | ||||
| Part # | Size | Headstock | Tailstock | Collet Closer | Price |
|
1201-00 |
3-C |
– |
– |
|
$350.00 |
| Picture | Description | ||||
|
D |
3-C to D Adapter | ||||
| Part # | Size | Headstock | Tailstock | Collet Closer | Price |
|
1011-77 |
3-C to D |
|
– |
– |
$2,500.00 |
| Picture | Description | ||||
|
Not Pictured |
WW-Type Drawbars used to hold WW- Size Collets or tooling in Headstock or Lever Collet Closer | ||||
| Part # | Size | Headstock | Tailstock | Collet Closer | Price |
|
0049-77 |
WW |
|
– |
– |
$450.00 |
|
1199-00 |
WW |
– |
– |
|
$450.00 |
