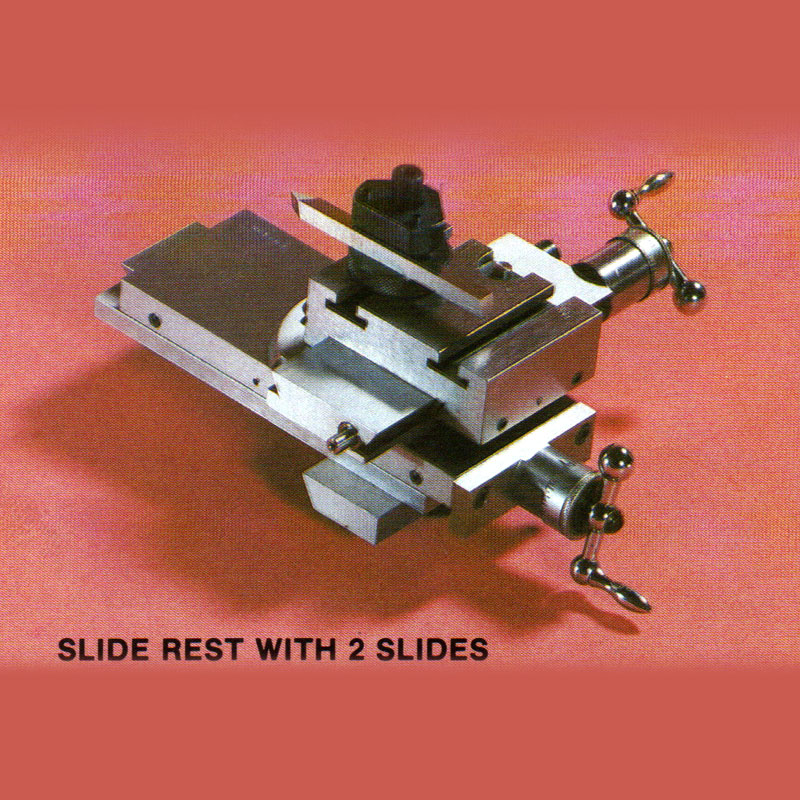

Slide Rest With 2 Slides
| Part# | Style | Price |
|
0050-13 |
2 Slides (Inch) |
$11,500.00 |
|
0050-23 |
2 Slides (Metric) |
$11,500.00 |

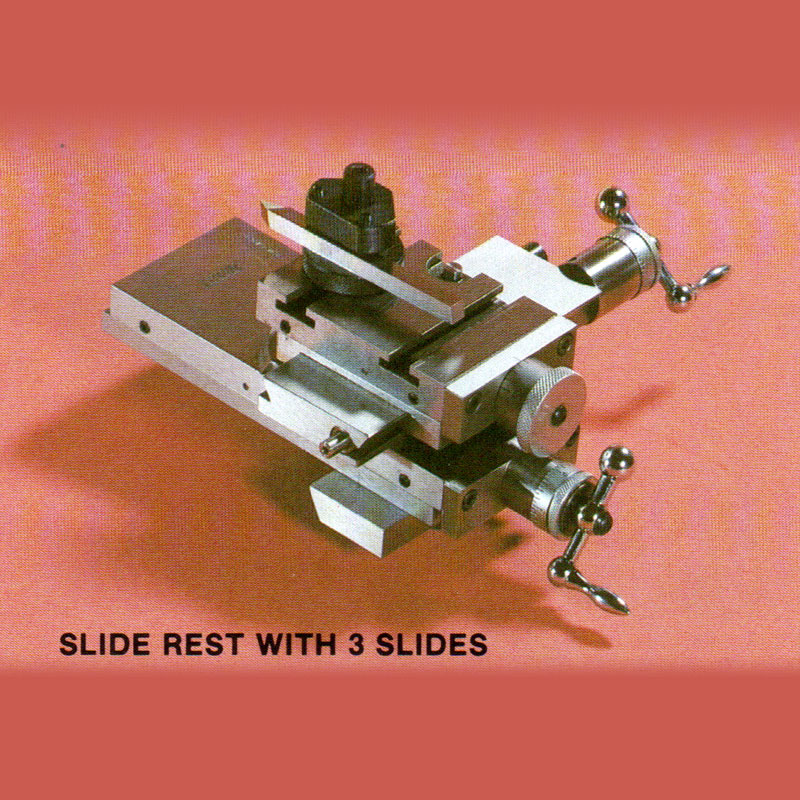

Slide Rest With 3 Slides
| Part# | Style | Price |
|
0030-13 |
3 Slides (Inch) |
$12,500.00 |
|
0030-23 |
3 Slides (Metric) |
$12,500.00 |
|
0112-77 |
Tool Post Assembly (Included with all models) |
$2,850.00 |

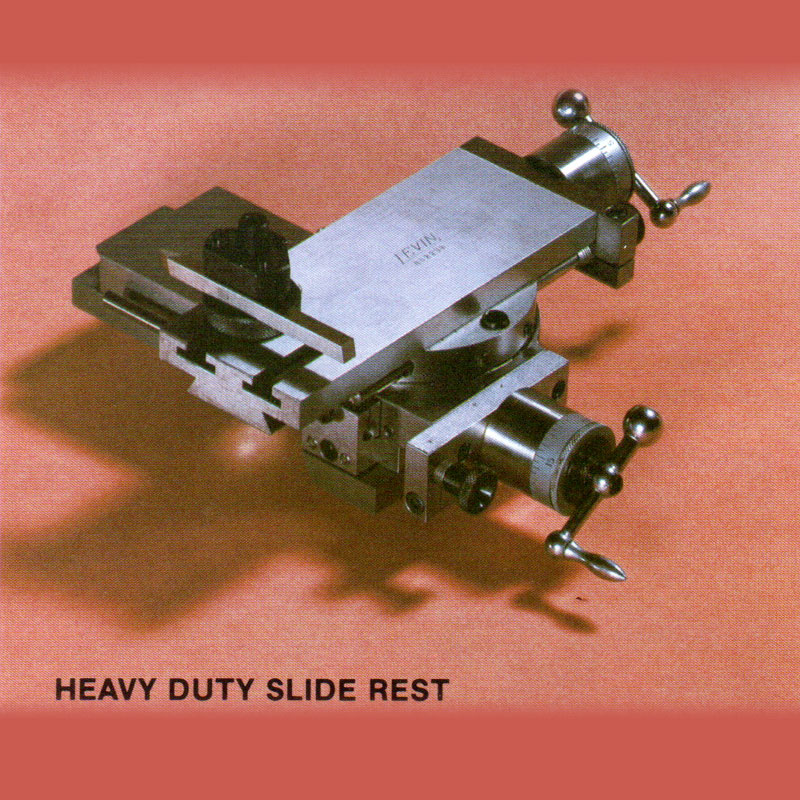

Heavy Duty Slide Rest
Screw feed on both slides.
| Part# | Style | Price |
|
0070-13 |
Inch |
$12,500.00 |
|
0070-23 |
Metric |
$12,500.00 |
| Slide Rest Stop | |
| This handy accessory is useful in limiting the travel of the longitudinal slide. The dovetail clamp permits locating the stop anywhere on the slide. It is of particular benefit where the lever feed attachment, 0260-03, is employed for production turning or boring operation. |
 |
| Part# | Price |
|
0270-03 |
$950.00 |
| Slide Rest Cutters | |
| These cutters are only available in sets of 6. Made of 3/16″ square high speed steel, they fit all models of Levin slide rests. They are pre-ground and ready for use. |
|
| Part# | Price |
|
0250-03 |
$750.00 |
| Specifications | |
| Width of lower Slide |
17/8“ |
| Length of Lower Slide |
71/8“ |
| Travel of lower Slide |
2″ |
| Swivel of longitudinal Slide |
±50º |
| Width of longitudinal Slide |
17/8“ |
| Length of longitudinal Slide |
71/8“ |
| Travel of longitudinal Slide |
2″ |
| Diameter of fiction dials |
1″ |
| Dial Graduations |
0.0005 in. or 0.01 mm |
| Size of tool bits used |
3/16″ |
