STEP COLLETS (MIDGET) – WHILE SUPPLIES LAST

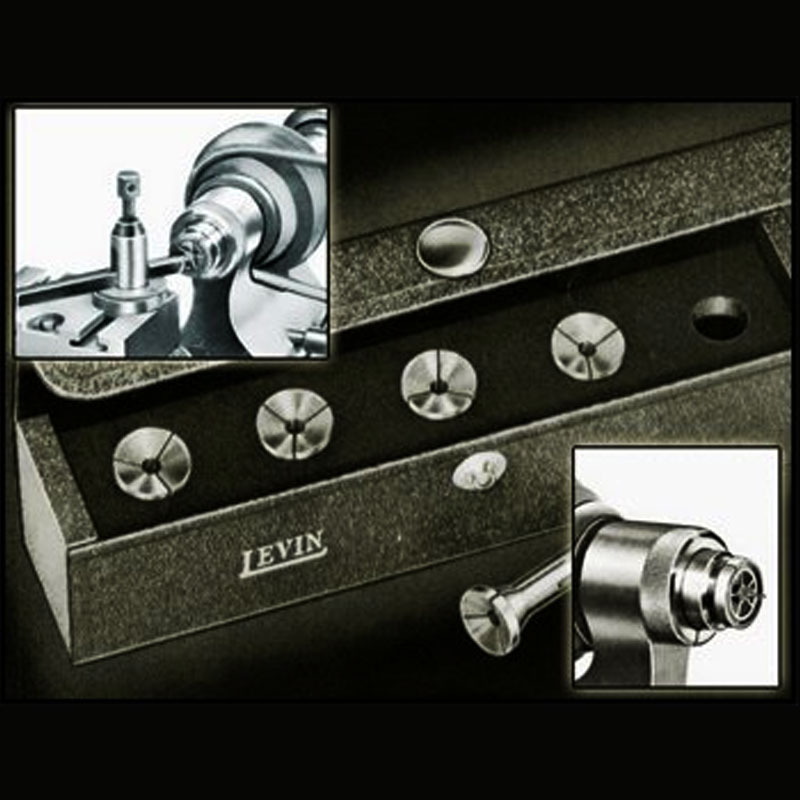

Thin discs, wheels, etc., can be held conveniently in a step collet. Each collet in the set of five has nine different recesses, the sizes of which are given in the table below.
| Part# | Body Length | STYLE | Price |
|
0471-03 |
MIDGET |
WW |
$1,500.00 |
|
SIZES OF STEPS IN SINGLE STEP COLLETS |
||||||||||||
| CAT. NO. | STYLE | NUMBER | STEP NUMBER | DEPTH OF STEPS | ||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||||
| 0471-03 | WW | 1 | .555″ | .515″ | .475″ | .435″ | .395″ | .355″ | .315″ | .275″ | .235″ | .010″ |
| 2 | .547″ | .507″ | .467″ | .427″ | .387″ | .347″ | .307″ | .267″ | .277″ | .010″ | ||
| 3 | .539″ | .499″ | .459″ | .419″ | .379″ | .339″ | .299″ | .259″ | .219″ | .010″ | ||
| 4 | .531″ | .491″ | .451″ | .411″ | .371″ | .331″ | .291″ | .251″ | .211″ | .010″ | ||
| 5 | .523″ | .483″ | .443″ | .403″ | .363″ | .323″ | .283″ | .243″ | .203″ | .010″ | ||
