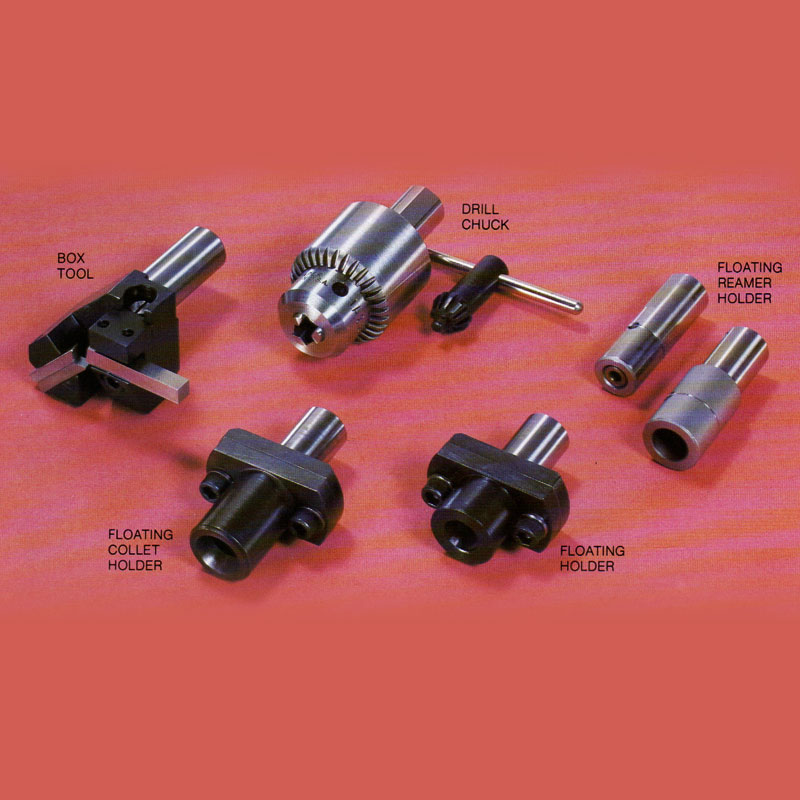

BOX TOOL
The body and cutter slide of this box tool are hardened. A micrometer adjustment is provided for positioning the cutter. Stock is supported by hardened vees.
| Part# | Body Length | Cutter | Shank | Price |
|
0360-03 |
1-9/32 |
3/16″x3/16″ |
1/2″ |
$3,150.00 |
DRILL CHUCK
Useful for holding drills, reamers and other tools directly in the turret. Shanks are hardened and ground.
| Part# | Chuck Size | Capacity | Shank | Price |
|
0390-03 |
No. 0 |
0-5/32″ |
1/2″ |
$1,550.00 |
|
0400-03 |
No. 1A |
0-1/4″ |
1/2″ |
$1,750.00 |
FLOATING HOLDER
A conventional type of adjustable holder. Shank and head are hardened and ground. Tools may be mounted either directly in the head or in a bushing.
| Part# | Hole Dia. | Shank | Price |
|
0410-03 |
3/8″ |
1/2″ |
$2,850.00 |
FLOATING REAMER HOLDERS
Designed to hold standard stub screw machine reamers for precision reaming operations. Made in two sizes to accommodate reamers up to 3/8″.
| Part# | Length | Reamer Size Held | Shank Size of Reamers | Shank Dia. of Holder | Price |
|
0420-03 |
1-1/2″ |
Series 00-7 |
1/8″ & 1/4″ |
1/2″ |
$2,750.00 |
|
0430-03 |
1-11/16″ |
Series 8-11 |
3/8″ |
1/2″ |
$2,950.00 |
FLOATING COLLET HOLDER
Holds WW type lathe collets. Since these collets are available in a complete range of sizes, the use of this holder eliminates the necessity for making bushings to hold tools. Both the shank and head are hardened and ground.
| Part# | Collet Type | Shank | Price |
|
0681-03 |
WW |
1/2″ |
$3,550.00 |
